Joystick 2

joystick 2

The Joystick 2 installs onto a Control Desk and tilts up to 15° in any direction: push forward (default W), pull back (S), tilt left (A) or right (D). Release the keys and it returns to the center.

Right-handed design

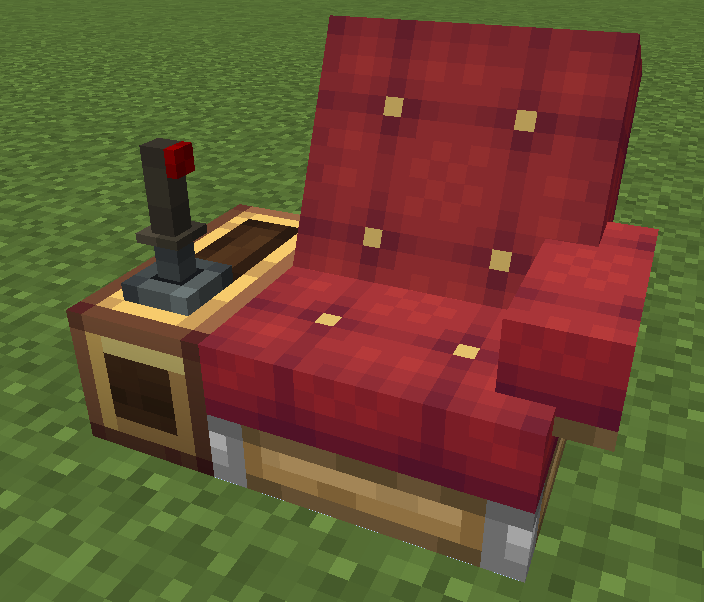

This joystick is designed for right-handed use.The recommended installation position is as shown in the picture, if you install it in a different position, you will need to modify the key bindings yourself.

Deflection Modes

Each axis (forward/back, left/right) is configured independently:

  • Free mode (default): the stick deflects smoothly. Full-deflection time (ticks) controls how long holding a key takes to reach full tilt (default 2, range 1..100); return time (ticks) controls how long it takes to return to the center after release (default 2, range 0..100; 0 = no return — the stick stays where it is). 20 ticks = 1 second.
  • Gear mode: the stick snaps to discrete gear positions instead of deflecting smoothly. Gear count: 1..31 (default 4). Gear positions are evenly spaced from -1 to +1 (e.g. 4 gears → {-1, -1/3, +1/3, +1}; 3 gears → {-1, 0, +1}; 2 gears → {-1, +1}). Each press of a key steps one gear up/down (holding does not repeat), and there is no auto-return — the stick stays on its gear even after you leave the seat, like a physical gear lever.

Key Bindings

Direction Default key
Forward / Back W / S
Left / Right A / D

All four bindings are configurable per-desk in the module settings menu (open the desk config menu and click the "Joystick 2" row). The bindings are independent from the regular Joystick — both controls can be installed and configured separately.

Lua API

local ss = require("ccpe.sensor_system")
local desk = ss.getPeripheral(4)
local joy2 = desk.getModule("joystick_2")   -- nil if no joystick 2 installed

joy2.isAxisXActive() / joy2.isAxisYActive()

Returns true while any key of that axis is pressed (X = left/right, Y = forward/back).

joy2.getAxisX() / joy2.getAxisY()

Returns the axis magnitude (number, 0..1) — how far the stick is deflected on that axis, regardless of direction.

print(joy2.getAxisX(), joy2.getAxisY())   -- 0..1

joy2.getAxisXSigned() / joy2.getAxisYSigned()

Returns the signed axis value (number, -1..1): +1 = right (D) / forward (W), -1 = left (A) / backward (S).

print(joy2.getAxisXSigned(), joy2.getAxisYSigned())

All methods are mainThread = false — safe to poll at high frequency.

Example

local ss = require("ccpe.sensor_system")
local desk = ss.getPeripheral(4)
local joy2 = desk.getModule("joystick_2")

while true do
    local forward = joy2.getAxisYSigned()  -- -1..1, thrust amount
    local steer   = joy2.getAxisXSigned()  -- -1..1, turning amount
    print(("forward %.2f  steer %.2f"):format(forward, steer))
    os.sleep(0.05)
end
